OpenAPI

Zodios api definition format while simple can contain sufficient information to generate an OpenAPI documentation.

openApiBuilder

openApiBuilder is a builder that can be used to generate an OpenAPI documentation from a Zodios api definition.

function openApiBuilder(info: OpenAPIV3.InfoObject): OpenApiBuilder

Methods of the builder

Method	Description
addSecurityScheme(name: string, securityScheme: OpenAPIV3.SecuritySchemeObject)	add a security scheme to proctect the apis
addPublicApi(definitions: ZodiosEndpointDefinitions)	add an api with public endpoints
addProtectedApi(scheme: string, definitions: ZodiosEndpointDefinitions, securityRequirement?: string[])	add an api protected by a security scheme
addServer(server: OpenAPIV3.ServerObject)	add a server to the openapi document
setCustomTagsFn(tagsFromPathFn: (path: string) => string[])	override the default tagsFromPathFn
build() => OpenAPIV3.Document	build the openapi document

Security scheme

The securityScheme allows you to specify an OpenAPI security scheme object. Zodios has 3 helper functions to generate the security scheme object.

Basic auth

import { basicAuthScheme } from "@zodios/openapi";

const doc = openApiBuilder(info)
            .addSecurityScheme('auth',basicAuthScheme())
            .addProtectedApi('auth', api)
            .build();

Bearer auth

import { bearerAuthScheme } from "@zodios/openapi";

const doc = openApiBuilder(info)
            .addSecurityScheme('bearer',bearerAuthScheme())
            .addProtectedApi('bearer', api)
            .build();

OAuth2

import { oauth2Scheme } from "@zodios/openapi";

const doc = openApiBuilder(info)
            .addSecurityScheme('oauth2',oauth2Scheme({
              implicit: {
                authorizationUrl: "https://example.com/oauth2/authorize",
                scopes: {
                  "read:users": "read users",
                  "write:users": "write users",
                },
              },
            }))
            .addProtectedApi('oauth2', api)
            .build();

custom tags

The tagsFromPathFn option allows you to specify a function that returns an array of tags for a given path. This is useful if you want to group your endpoints by tags.

note

Zodios will by default deduce tags from the last named resource in the path. So for example, the path /users/:id will have the tag users, and the path /users/:id/comments will have the tag comments. Only pass this option if you want to override this behavior.

const doc = openApiBuilder(info)
            .addPublicApi(api)
            .setCustomTagsFn((path) => ({
                '/users': ['users'],
                '/users/:id': ['users'],
                '/users/:id/comments': ['users'],
              }[path])
            .build();

toOpenApi - deprecated

To generate an OpenAPI documentation from your api definition, you can use the toOpenApi method of @zodios/openapi package.

function toOpenApi(
  api: ZodiosApiDefinition,
  options?: {
    info?: OpenAPIV3.InfoObject
    servers?: OpenAPIV3.ServerObject[];
    securityScheme?: OpenAPIV3.SecuritySchemeObject;
    tagsFromPathFn?: (path: string) => string[];
  }
): OpenAPIV3.Document;

Examples

swagger-ui-express

You can expose your OpenAPI documentation with the @zodios/express package.

import { serve, setup } from "swagger-ui-express";
import { zodiosApp } from "@zodios/express";
import { openApiBuilder } from "@zodios/openapi";
import { userApi, adminApi } from "./api";
import { userRouter } from './userRouter';
import { adminRouter } from './adminRouter';

const app = zodiosApp();

// expose user api endpoints
app.use('/api/v1', userRouter);
app.use('/api/v1', adminRouter);

// expose openapi documentation
const document = openApiBuilder({
  title: "User API",
  version: "1.0.0",
  description: "A simple user API",
})
  // you can declare as many security servers as you want
  .addServer({ url: "/api/v1" })
  // you can declare as many security schemes as you want
  .addSecurityScheme("admin", bearerAuthScheme())
  // you can declare as many apis as you want
  .addPublicApi(userApi)
  // you can declare as many protected apis as you want
  .addProtectedApi("admin", adminApi)
  .build();

app.use(`/docs/swagger.json`, (_, res) => res.json(document));
app.use("/docs", serve);
app.use("/docs", setup(undefined, { swaggerUrl: "/docs/swagger.json" }));

app.listen(3000);

Result:

OpenAPI to Zodios API definition

If you want to use an existing OpenAPI documentation to generate your Zodios API definition, you can use the openapi-zod-client package.

npx openapi-zod-client "swagger.json" -o "zodios-client.ts"

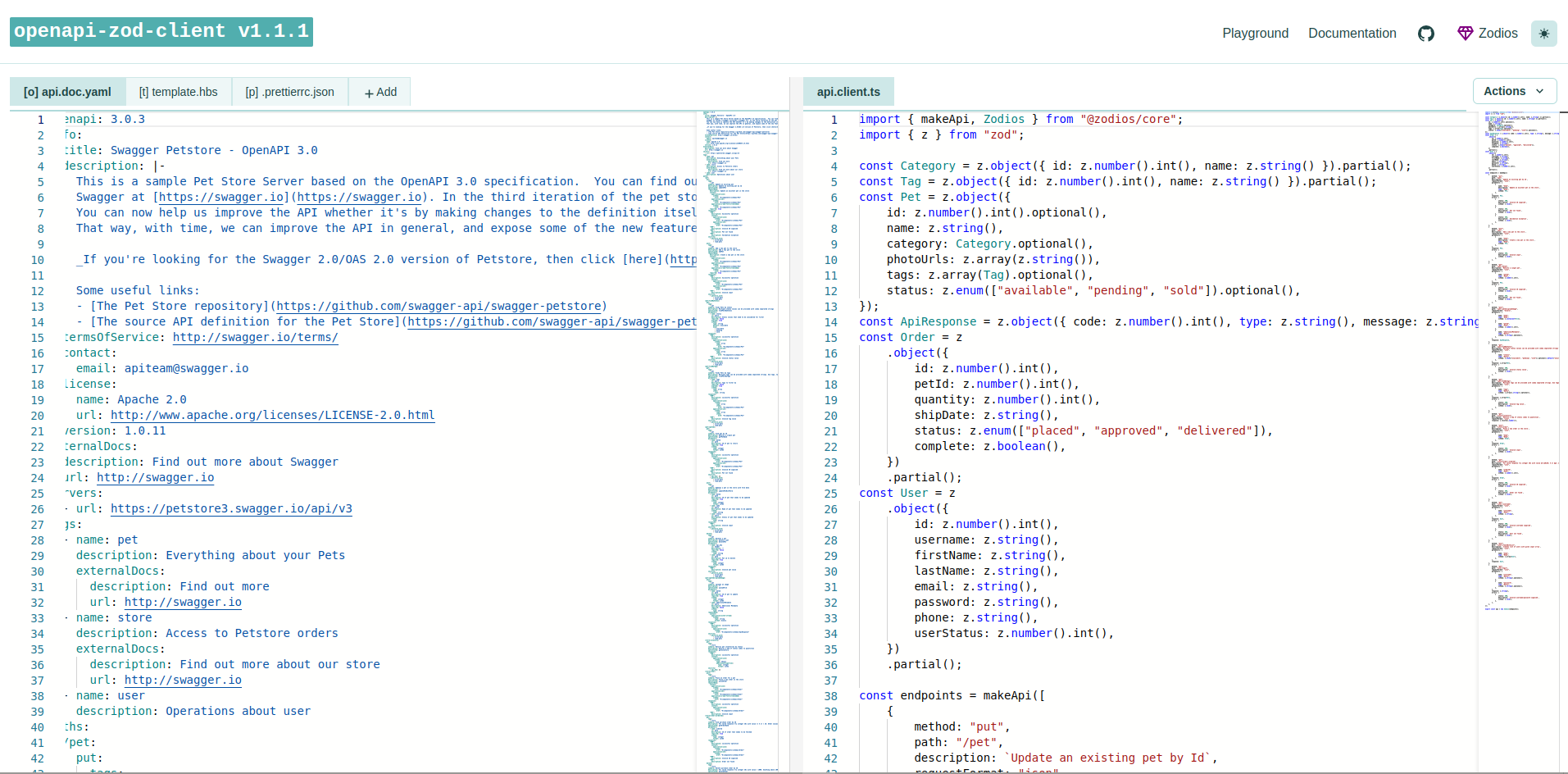

You can also use the online openapi to zodios api definition tool.
